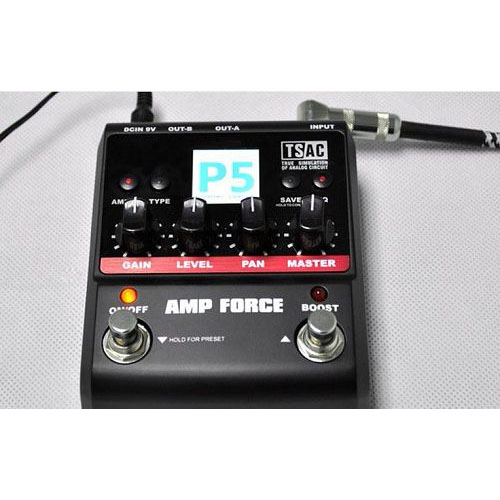

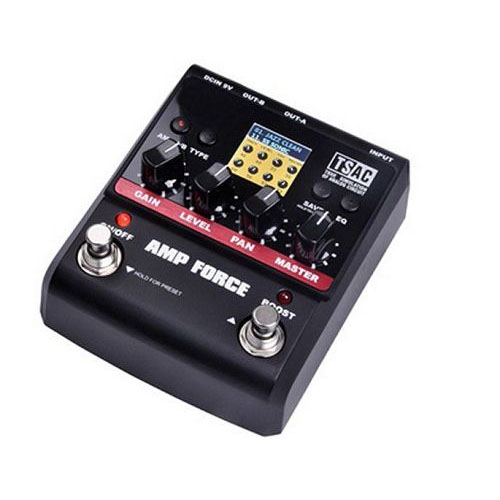

AF-4 AMP FORCE Modeling Amp Simulator:
Built upon the TC/AC (True Simulation of Analog Circuit) technology, Amp Force offers twelve warm tube guitar amps sounds in a compact sized twin pedal. With its dual engine and A/B output, Amp Force allows you to mix two-amp sounds together and pan it to two outputs. A switchable noise gate and 12 cabinet models can be applied to any of the modes.
12 classic guitar amplifier modeling models with TS/AC technology
Dual engine with A/B channel output
3-band passive EQ and presence control
Extra switchable 12 cabinet simulator
Built-in noise gate
Up to 9 storable user presets plus manual mode
6 dB boost footswitch
Easy switching between manual and presets
Large color LCD panel(128*128), graphic interface making the overall operation easy and intuitive
New generation 32-bit DSP, high performance 24-bit 44.1kHz AD/DA convert
Input/output sensing circuit select optimized routing automatically
Runs on battery or AC powervv
Buffered bypass or true bypass
Effects types: 12 modeling guitar amp models
Presets: up to 9 storable user presets plus manual mode
Sampling frequency: 44.1 kHz
A/D converter: 24-bit
Signal processing: 32-bit
Frequency response: 20Hz-20kHz ±1dB
THD+N: 93dBu (＜0.003%) A-Weighting
Dynamic Range: 100dB
Input: -20dBV@1MΩ
Output: -10dBV(Output load impedance of 10 K or more)
Display: 128*128 TFT
Power: 9V DC (9V battery or optional ACD-007A Adaptor)
Dimension: 125(L) * 108(W) * 57(H) mm
Weight: 390 g
