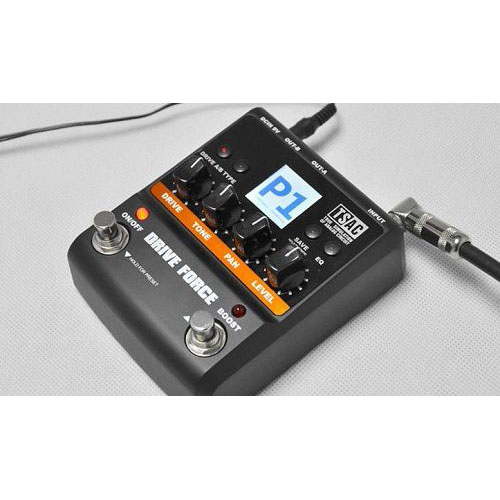

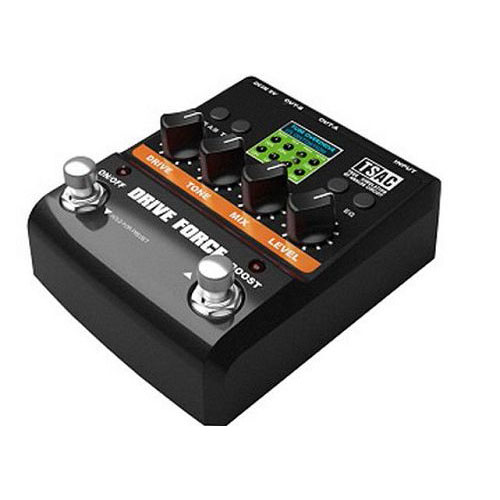

AF-3 DRIVE FORCE Modeling Stomp Simulator:
With ten models including booster, tube overdrive, and distortion, Drive Force gives you all pedal sounds you'll ever need. With its Dual Engine and A/B output, Drive force allows you to mix two-drive sounds together and pan it to two outputs. A switchable noise gate and 12 cabinet models can be applied to any of the models.
10 classic modeling stomp box models with TS/AC technology
Dual Engine with A/B channel output
3-band EQ with mid frequency sweep
Selectable 12 Cabinet simulator
Built-in noise gate
Up to 9 storable user presets plus manual mode
Extra 6 dB boost with individual stomp switch
Easy switching between manual and presets
Large color TFT LCD panel (128x128), graphic interface making the overall operation easy and intuitive
New generation 32-bit DSP, high performance 24-bit 44.1kHz AD/DA convert
Input/output sensing circuit select optimized routing automatically
Buffered bypass or True bypass
Runs on battery or AC power
Effect types: 10 modeling stompbox models
Presets: Up to 9 storable user presets plus manual mode
Sampling frequency: 44.1 kHz
A/D converter: 24-bit
Signal processing: 32-bit
Frequency response: 20Hz-20kHz ±1dB
THD+N: 93dBu (＜0.003%) A-Weighting
Dynamic Range: 100dB
Input: -20dBV@1MΩ
Output: -10dBV(Output load impedance of 10 KΩor more)
Display: 128*128 TFT
Power: 9V DC (9V battery or optional ACD-007A Adaptor)
Dimension: 125(L) * 108(W) * 57(H) mm
Weight: 390 g
