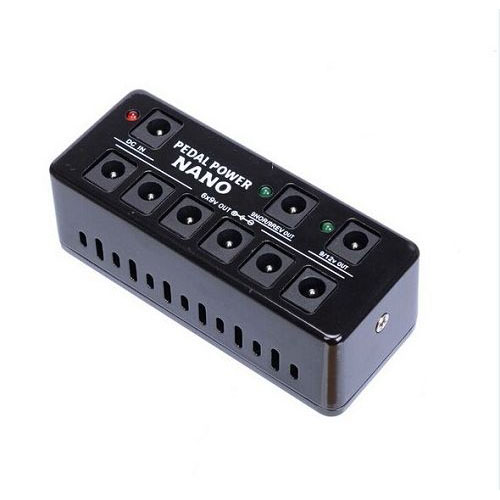

Pedal Power NANO is the best power supply system supporting effect pedals with the finest DC power.
Also It is a multi-function power supply offering 6 normal 9V outputs, one 9V/12V changeable output,and one 9V/-9V changeable output in a compact size. -9V is for the effect pedals which use center positive. For example, Fuzz(with Germanium transistor) and Octavia. And factory setting is normal polariry(center negative). Each green LED turns on when output is selected 12V or -9V.
Input : 15V, 1,000mA
Output : 6 x 9V each max. 300mA
1 x 9V/12V max. 300mA
1 x 9V/-9V max. 300mA/20mA
Total Output Current : max. 1,000mA from 8 CHs
Dimensions : 93(W) x 38(D) x 31(H) mm
Power Host Weight : 120g
