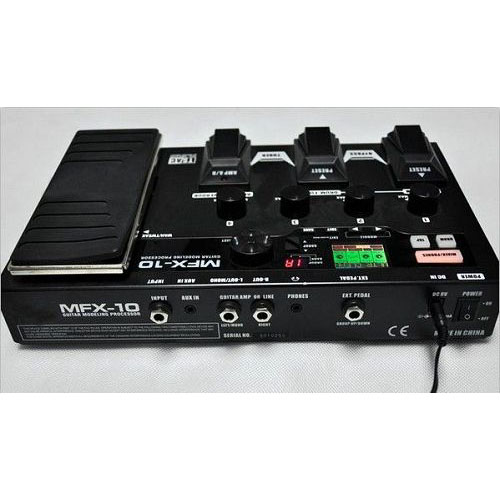

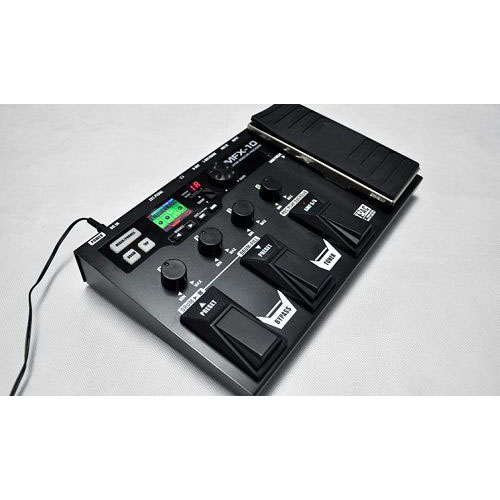

MFX-10 Multi-Effects Processor:
What do you get in the MFX-10? A lot of "WOW" !
Such as...
A total of 55 models, up to nine can be used simultaneously
19 classic amp and pedal models with A/B channel switching
Vintage 3-band passive EQ for every amp model
Parametric EQ with extra middle frequency sweep control for pedals
12 cabinet models provide two different modes for guitar amplifier or mixer/PA input
Built-in drum machine with CD quality PCM sounds
Up to 20 seconds phrase loop with sound on sound
The AUX IN jack makes it easy to practice along with MP3, CDs and other inputs
The expression pedal lets you adjust the volume or effects parameters in real time

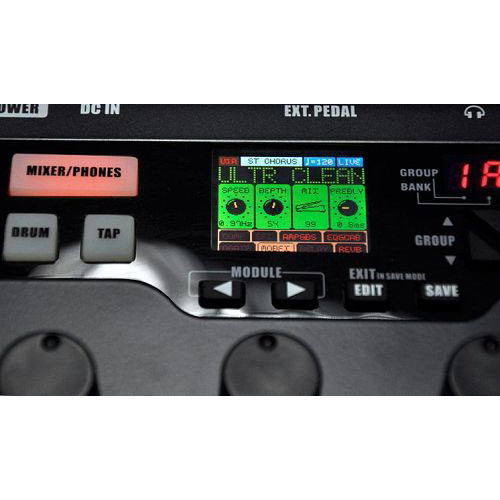

Big backlit 160 x 128 TFT LCD for clear, easy viewing of the device’s name, parameters, tuner display etc
A total of 72 presets: 36 factory + 36 user presets. The A/B switch allows you to use up to 144 presets
New generation 32-bit DSP, High Performance 24 Bit/ 48kHz AD/DA convertors
Latest TS/AC (True Simulation of Analog Circuits) Technology duplicates the distortion and tone shape of tube and vintage effect pedals
Effects types: 55
Effect modules: Max. 8 simultaneous modules
User settings: 4Preset (A-D) x 9 (1-9) groups = 36
Factory setting : 4 Preset (A-D) x 9 (1-9) groups = 36
Total 72 presets (up to 144 presets with AMP A/B switch)
Sampling Frequency: 44.1kHz
AD/DA converter: 24bit
Signal processing: 32bit
Frequency response: 20Hz-20,000Hz ±1dB
THD+N :< 0.01%
Display: 160 x 128 TFT LCD
Jacks: INPUT, LEFT(MONO), RIGHT, HEADPHONES, AUX IN, EXT.PEDAL, DC IN.
Input： -10dBv@3.3k
Output: -10dBv (Output load impedance of 10k? or more)
AUX In: -10dBV@10k or more
Headphones: 20mW + 20mW (into 32? load)
Power: 9V DC, 500mA, ACD-007A (Negative pin)
Dimensions: 330(L) × 202(W) × 72(H)mm
Weight: 2.65kg
Accessories: Owner’s Manual, Power Adaptor
