All items guaranteed 100% BRAND NEW in the original edition Box.
ONE-YEAR WARRANTY !!!
Features:

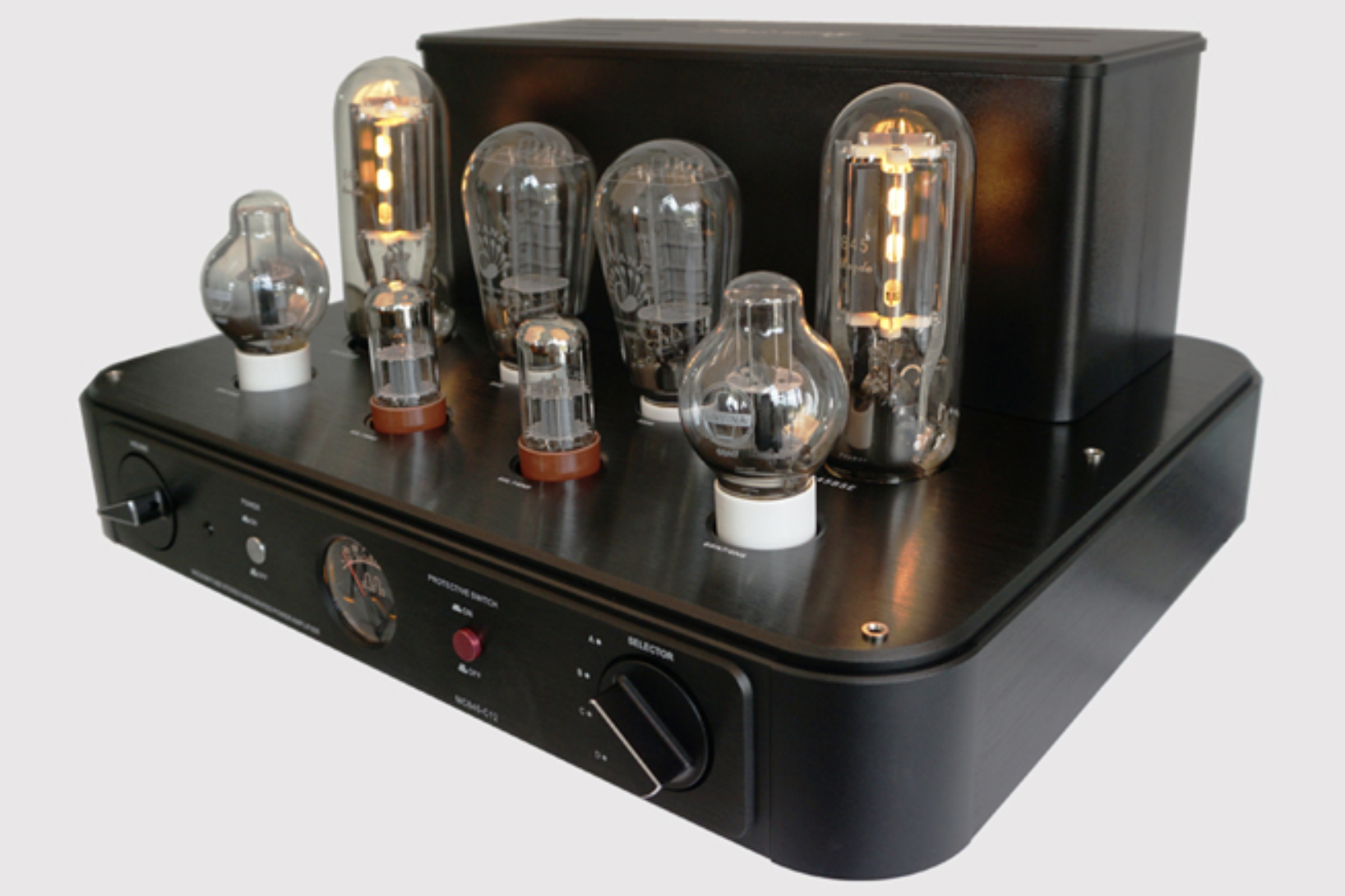

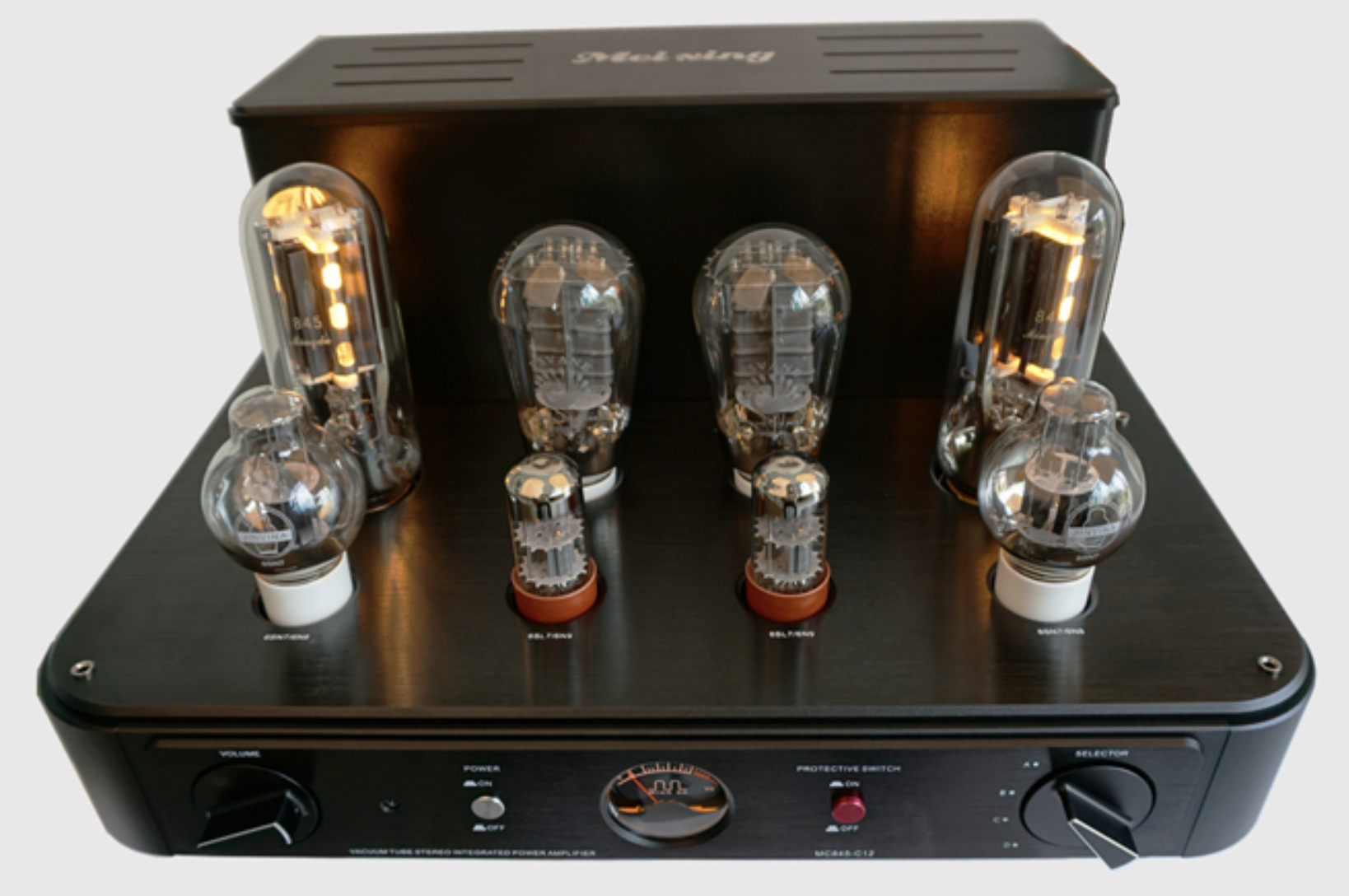

a)The machine adopts tube Full music 300B from Tianjin driving 845,which makes it more perfect.It looks powerful with an obvious gradation.
b)It includes power switch and hyperbaric switch,which makes it more stable at work.When you use it,open the power switch first,and then the hyperbaric switch in 1 mintues.If you want to don't use it,turn off the hyperbaric switch first and then the power switch.However,you should wait for 5 minutes to restart the machine if you turn it off.
c)The case of the machine is made by aluminum alloy,which looks elegant and beautiful.With a better shielding effect,it sounds more quiet.The special triangular knob made by Meixing Factory is of artistic beauty and it can also distinguish the position between volume and selection.As for the power meter,it is classic and accurate and its perfect details as well as high cost performance are comparable with international brands.
d)A remote controlled volume system is added to the machine,as well as the ALPS Potentiometer from Japan,and the the cover of handle is made by aluminum alloy.
Specifications:
Maximum output power: 20W × 2 (Group A)
Output impedance: 4Ω, 8Ω
Input voltage: 300mv
Input Impedance: 100K
Distortion: ≤ 1%
Frequency response: 18Hz - 30KHz ± 1dB
Signal-to-noise ratio: 88dB
Input selection: 4 Groups
Output options: 2 Groups
Power consumption: 350W
Vacuum tubes : 845 BSE(made by MingDal) × 2
300B(Full music) × 2
6SN7 × 2
6SL7 × 2
Power supply voltage: 110/220V 60Hz/50Hz
(100V,110V,120V, 127V, 230V, 240V version will
take 3-14 work days to order),
220V version is in stock
Net weight: 35Kg
Net Volume: L48 × W38 × H28 (cm)
Carton size: L60 x W50 x H40 (cm)
Gross weight: 38Kg(amp) + 4KG(tubes) = 42 kg
