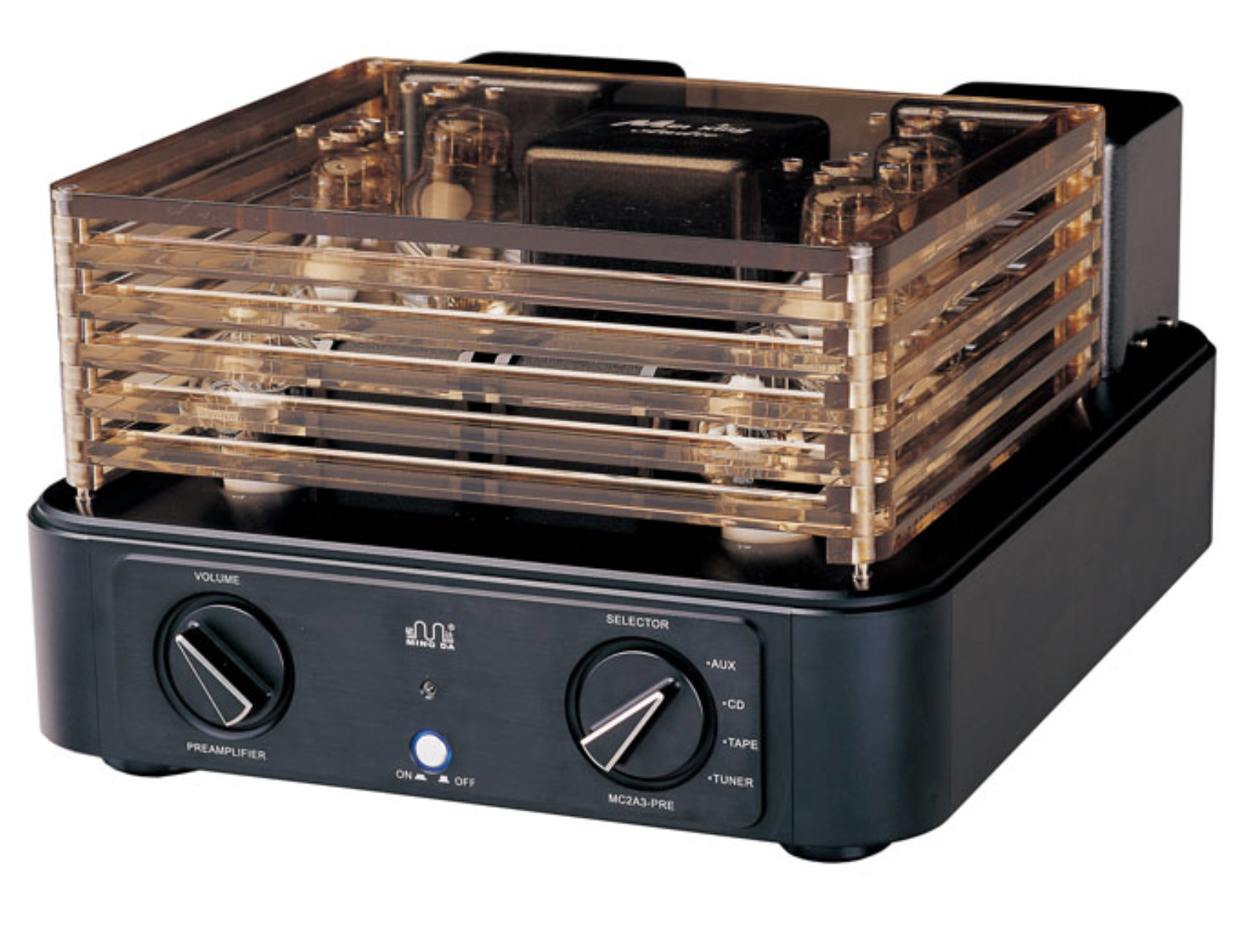

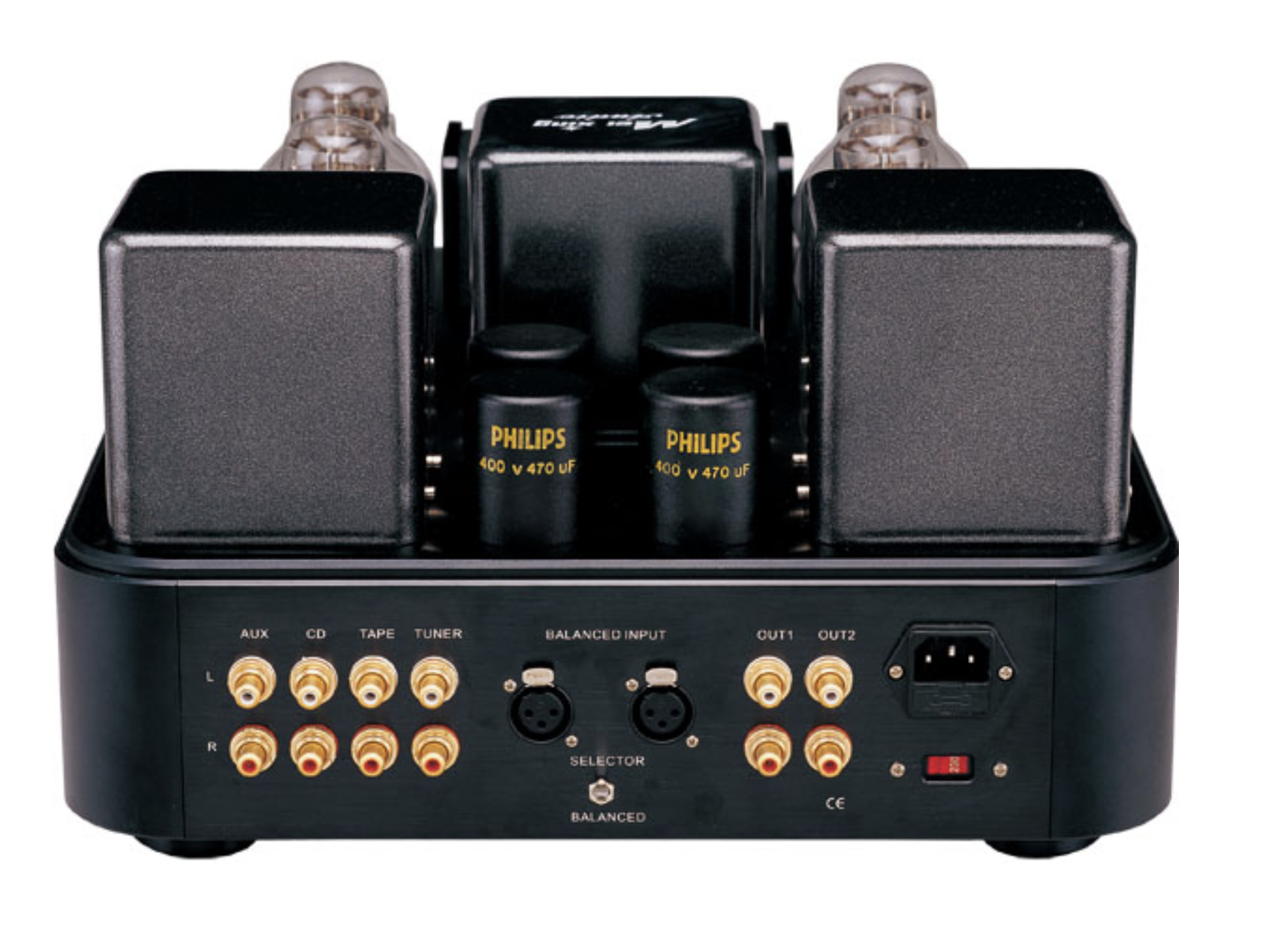

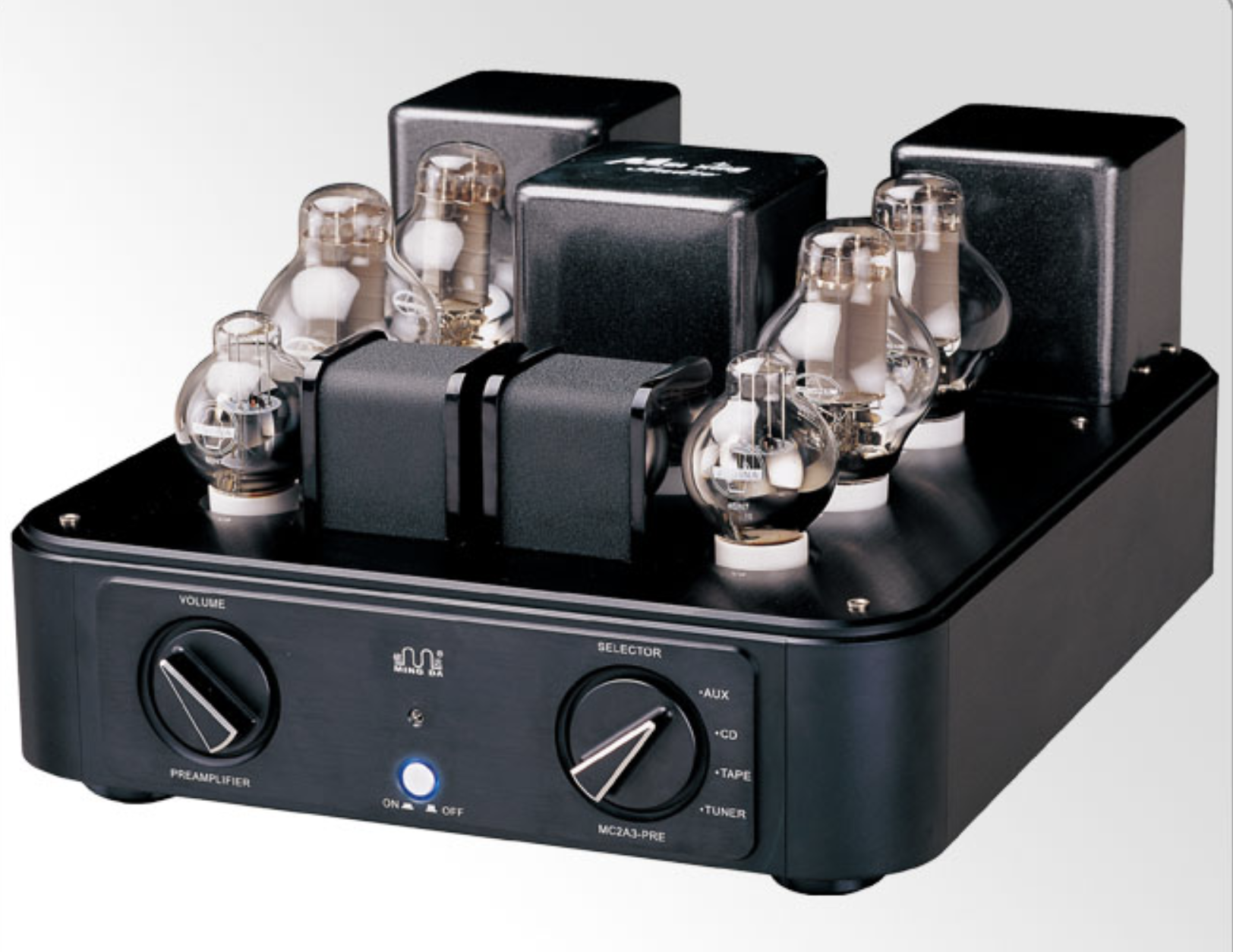

PRE AMP TUBE PRE-AMPLIFER 2011 UPGRADE VERSION

All items guaranteed 100% BRAND NEW in the original edition Box.

ONE-YEAR WARRANTY !!!

Features:

a)The machine uses the 2A3 Pipes of high quality,which is specially made by Meixing Factory.It adopts the excellent MC300-PRE circuit.

b)Using the vacuum tube for rectification and magnification and it gathers the excellent international electronic component and transformer,forging a high-quality tube pre-AMP,which is the best choice for matching high-grade tube pre-AMP as well as vacuum power AMP.

Specifications:

Voltage Gain: 20dB

Output Impedance: 600Ω

Input Voltage: 200mv -1000mv

Iutput Impedance: 100K

Distortion Factor: ≤0.5%

Signal-to-Noises: 92dB

Power Dissipation: 75W

Inputs: 4 Groups

Outputs: 2 Groups

Frequency: 5Hz - 150KHz+0 dB-dB

Vacuum Tubes: 2A3×4 6SN7×2

Net Dimensions : L38 x W46 x H26 cm

Vacuum tube Packing size: L35 x W23 x H30 (cm)

Carton Size ：L58 x W52 x H40 cm

Vacuum tube Packing weight: 3kg

Net weight : 21kg

Gross weight : 24kg

Total weight: 24kg + 3kg = 27kg

Power supply voltage: 110/220V 60Hz/50Hz

(100V, 110V, 120V, 230V, 240V version will

take 3-14 work days to order),

110V and 220V version is in stock
