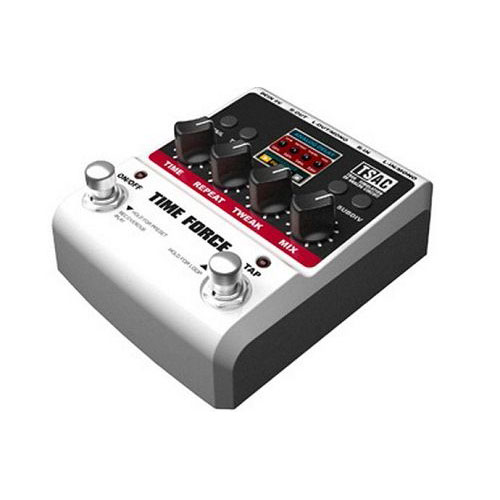

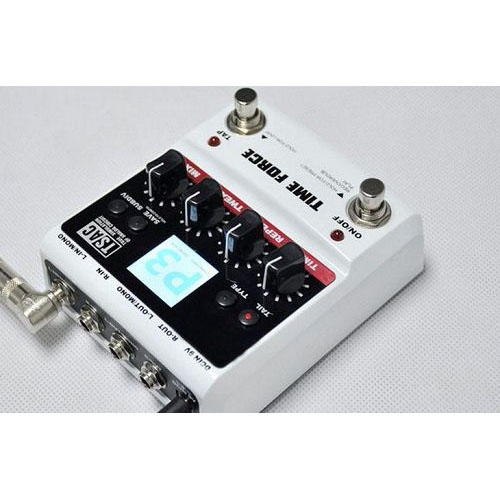

TIME FORCE Multi Digital Delay



A total of 11 delay models include tape, analog and reveres etc. provide best tone of full direction. Either instrument input or loop jacks of guitar amp can be connected to TIME FORCE with -10dB or +4dB input/out pad, and kill dry functions. Flexible I/O jacks detect the stereo and mono connections automatically, which enable more routing possibilities. 40 seconds in stereo loop station make the practice full of fun. Tail function makes effect sound fade out when the effect is off. Tap tempo with different sub division can input the delay time easily.



11 Delay effects

True stereo signal processing

Automatic I/O detecting circuit

Tail keeping function

Kill dry function

Up to 9 storable user presets plus manual mode

Individual TAP tempo function

Easy switching between manual and presets

Large color LCD panel (128x128), graphic interface making the overall operation easy and intuitive

New generation 32-bit DSP, high performance 24-bit 44.1 kHz AD/DA

Input/output level for send/return

Buffered or true bypass

Runs on battery or AC power



Effects types: 11 modeling delay modes

Presets: up to 9 storable user presets plus manual mode

Sampling frequency: 44.1 kHz

A/D converter: 24-bit

Signal processing: 32-bit

Frequency response: 20Hz-2000Hz ±1dB

THD+N: 93dBu (＜0.003%) A-Weighting

Dynamic Range: 100dB

Input: -20dBV@1MΩ

Output: -10dBV(Output load impedance of 10 KΩor more)

Display: 128*128 TFT

Power: 9V DC (9V battery or optional ACD-007A Adaptor)

Dimension: 125(L) * 108(W) * 57(H) mm

Weight: 390 g
