Product ID : GT-5
Product Tags :
Product Description

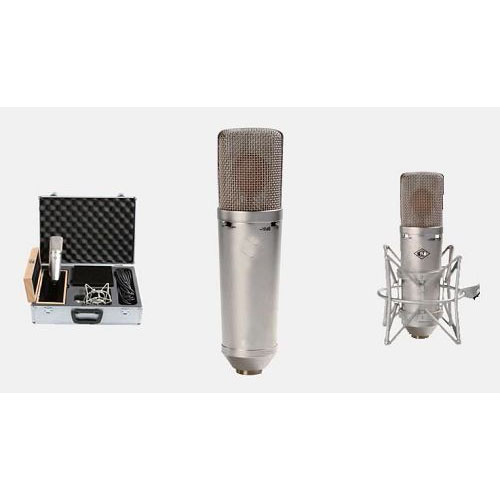

GT-5 is a tube condenser microphone featuring 9 different polar patterns. Patterns are remotely selectable on the custom power supply for ease of use in even the most demanding applications. The patterns include omni, figure-8,cardioid, and 6 intermediate stages. Two slide switches located on the microphone body below the head grill control the low-frequency roll-off and sensitivity reduction. GT-5 uses 1.07 inch larger capsule. The tube preamplifier circuit uses lower noise 6072a vacuum tube. The transformer uses LUNDAHL from Sweden. It has the desirable fat bottom end response and very low self-noise. This microphone has a warm tone characteristic of vintage tube microphones that vocalists and studio engineers have come to love.

Frequency Response: 20~20KHz
Sensitivity: 20mV/Pa
Polar Pattern: Cardioid, Omni-directional and Figure-8 and 6 intermediate stages on AC powering unit
Rated Impedance: 200 ohms
Maximum SPL for 0.5% THD @ 1000Hz: 144dB
Equivalent Noise Level: 16dB (A weight IEC 651)
