Digital Effect Pedal Truth Modulation:
Product feature:

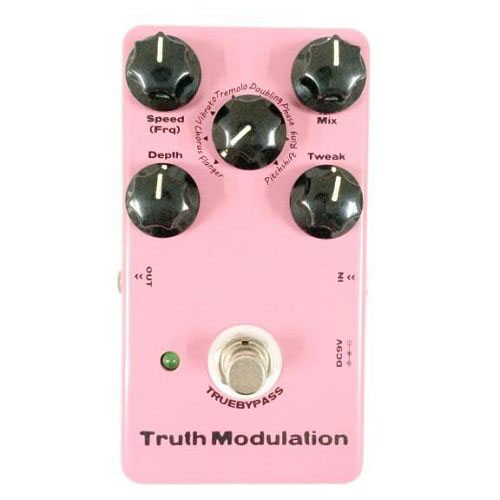

Five knobs of truth modulation.
Speed(Frq): choosing speed and frequency of modulation and scan.
Depth: choosing deep adjustment value of modulation and scan.
Mix: adjustment ratio between dry and wet sound, namely, between dry and effect sound,which directly influences Modulating algorithm effect except for Vibrato(gain variation)
Tweak: This switch adjust different parameters in Modulating algorithm.
Controlling(8 algorithms):
Flanger tweak : controlling scanned Depth range
Chorus tweak: controlling scanned Depth range
Vibrato tweak: controlling scanned Depth range
Tremolo tweak: controlling input gain
Doubling tweak: controlling scanned Depth range
Phase tweak: controlling feedback coeffeicent
Ring tweak: controlling output gain
Pitchshift tweak: controlling scanned Depth range
Researchers spent one year having invented this milestone product by algorithm designing,
software programming and debugging. We have deeply discussion and calculate on every detail
of reverb algorithm, accurate control and interactive experience on every switch parameter.
Actually every process of software code is soul replanting, hoping to share a perfect
reverb product.
Music modulating effect algorithms has some built-in parameters, including modulating
waves such as triangle wave, sine wave and zigzag wave, which are almost proven the best
ones after many trail listening.
There are four special advanced algorithms and code upgrades among them:
Pitchshift, Chorus, Doubling and Phase. We use modern siginal processing technology to
build our own unique algorithm and form DSP product after careful software design and
debugging.
When it on work customers can adjust reverb parameter to get needed reverb effects.
Specification:
Electronic parameters:
Working voltage: DC9V
Chip inner voltage:1.8V
Chip outter voltage:3.3V
ADC SNR: 90Db
DAC SNR: 100Db
Sampling frequency: 44100Hz
Battery: self-provided
Case material: aluminum alloy
Packing size(mm): 160x93x70
Weight(g): 328
