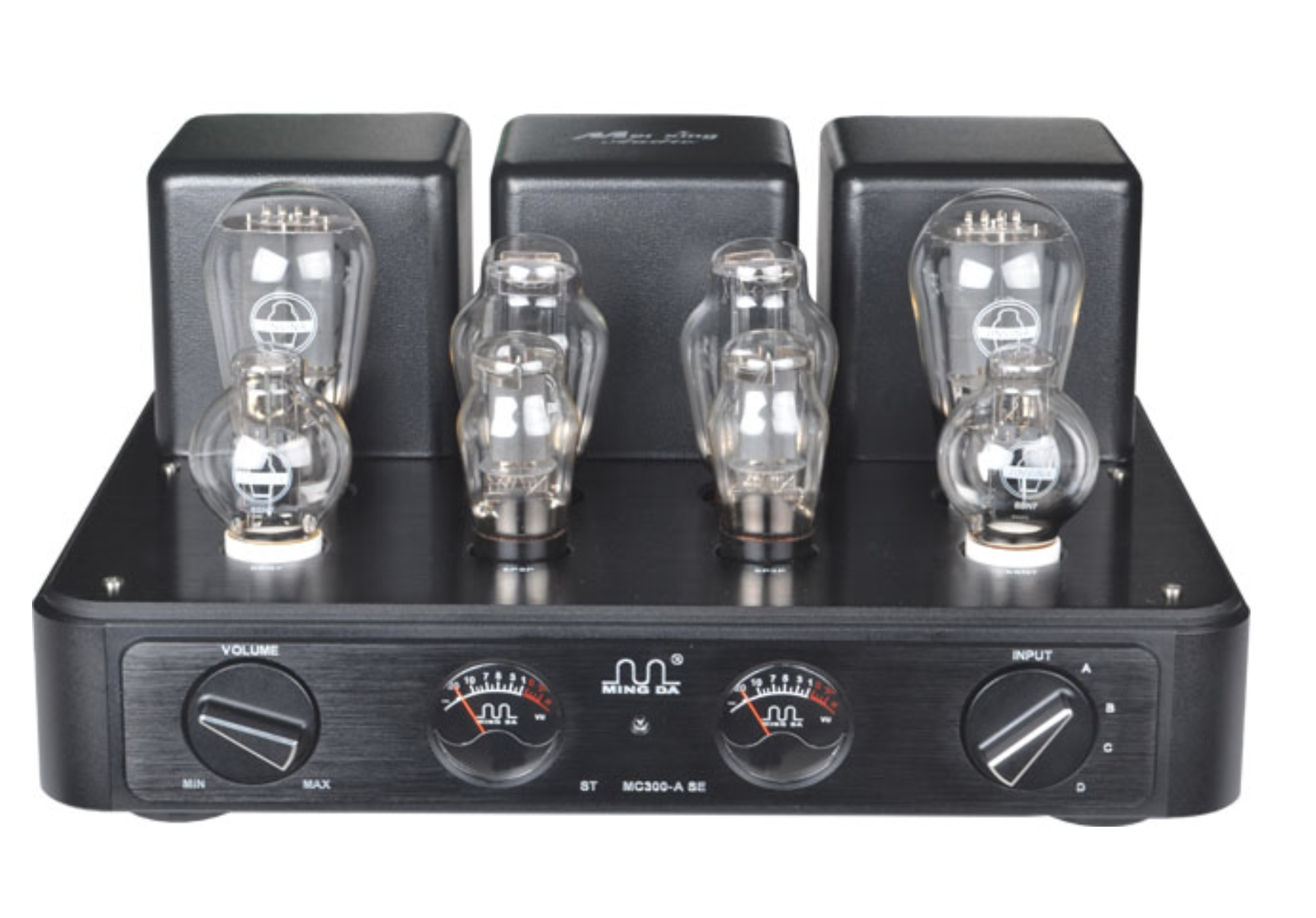

TUBE 300B STEREO INTEGRATED AMP CLASS A

Feature:

Ming Da MC300-ASE is 300B class A amplifier, with a unique mix of excellent circuit and high-quality power transformer, output transformer, tube rectifier,choke. It makes the reduction effect, ,the range of frequency response and the sound field of the timbres unique.

Its machine appearance are carved delicately by Japan Fanuc CNC machining center and CN C lathes, having 6mm thick aluminum and aluminum shock apron. We select the following electronics components: valve using international famous Chech JJ brand, Tianjin all music 300B, Japanese imported annealed stalloy, oxygen-free thermostable pure copper wire, Danmark Jensen copper oil capacitors, imported silver plated signal wires, imported connectors, Japan ALPS potentiometer, exported high voltages electrolytic capacitor, aluminum made handle, whole hand scaffolding welding circuit, and imported acrylic shield. This amplifier is worth to collect for buyers.

The amplifier feels good when enjoying vocal. It has a nice, soft, mellow and bright sound, and a real positioning sound field. It is equipped with Japan potentiometer, a remote control device,and the handle is made from aluminum shell.

Specification:

Output Power: 8W×2(Class A)

Output Impedance: 4Ω － 8Ω

Input Impedance: 100K

Input Voltage: 300mv

Distortion: ≤1%

S/N Ratio:93 dB

Power Consumption: 205W

Inputs: 4 pairs

Outputs: 2 pairs

Frequency Response: 18Hz-30KHz±1dB

Valves: Full music 300B×2 274B×2 6P3×2 6SN7×2

(It is suitable to use with 50-100W Hi-Fi audio with its sensitivity is more than 88dB)

Power supply voltage: 110/220V 60Hz/50Hz

                                     (110V，120V, 230V, 240V version will

                                     take 3-14 work days to order),

                                     220V version is in stock

Net Dimension(LWH): 46×38×24(CM)

Packing Dimension(LWH): 58×52×40(CM)

Net Weight: 31kg

Gross Weight: 36kg
