Specification:
technical parameter
Rated output power: 22W+22W(RMS)
Harmonic distortion: 1% (1KHZ) Frequency response of the whole machine: 10HZ~70KHZ(-1.5DB)
Input sensitivity: 160mv(0db) 260 mV (-3db) 1V(pre in)
Input impedance: 100KΩ
Signal to noise ratio: 92db Output impedance: 4Ω 8Ω 16Ω
Left and right output balance: <1db
Power consumption of the whole machine: 200W

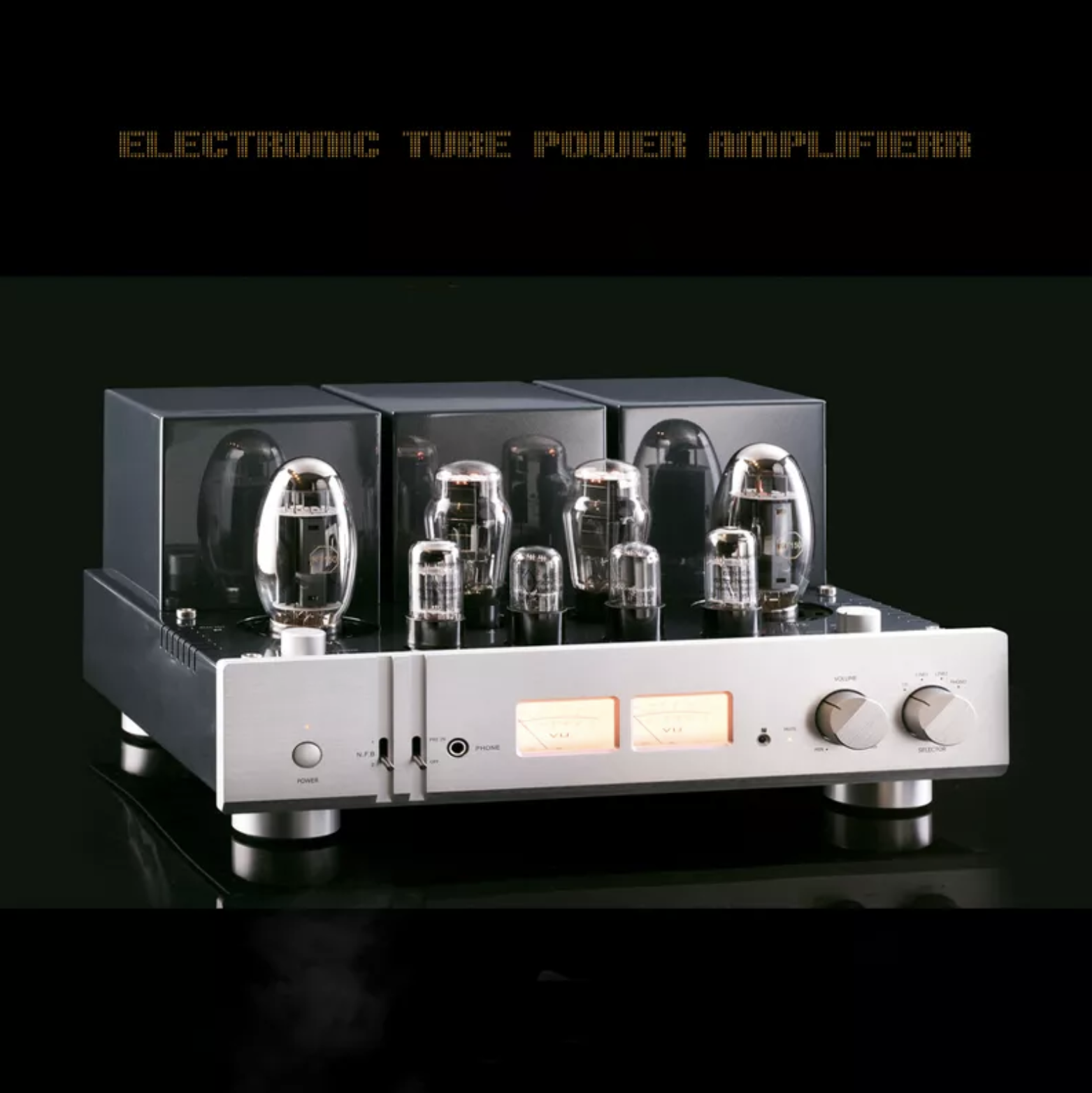

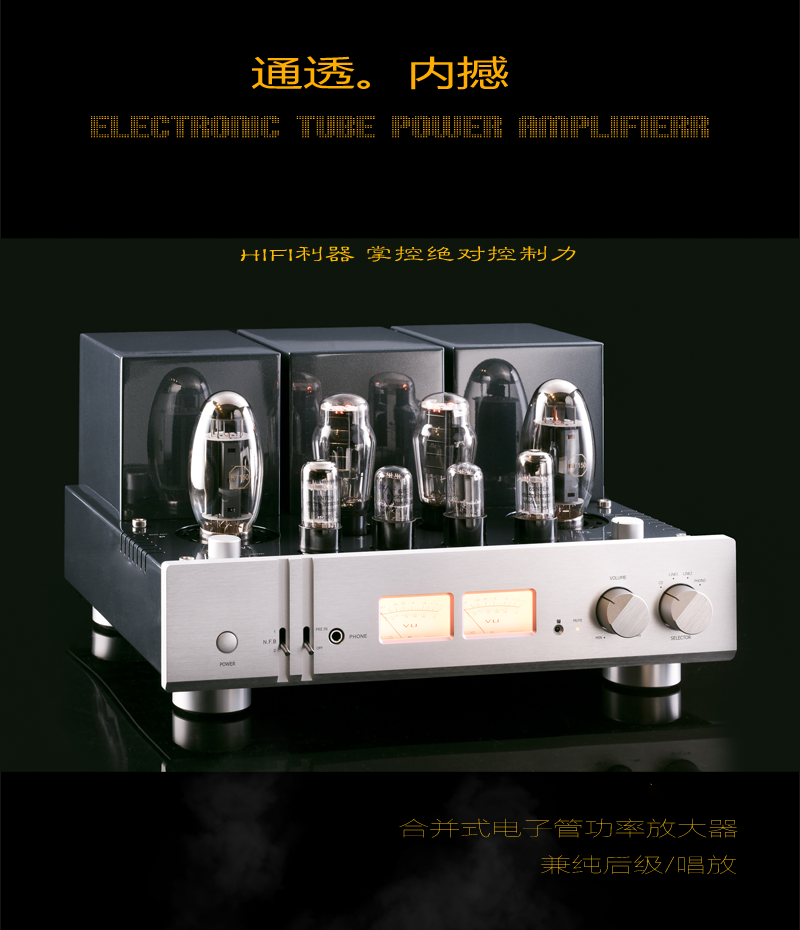

Use vacuum tube: 6SL7×2, 6SN7 (Russia)×2, KT150 (Russia)×2 5Z3P*2
Machine volume (W×D×H): (440×400×230)mm
Power supply voltage: ~230/115V±5% (50Hz)
Working conditions: Temperature: 0ºC~40ºC Humidity: 20%~80%
Storage conditions: Temperature: -20ºC~70ºC Humidity: 20%~90%
Features of this machine:
1.Purely handmade, the whole machine adopts scaffold welding
2.Using two high-quality, wide-frequency response and high-quality Japanese Z11 iron core square output transformers.
3.Use a high-power Z11 iron core toroidal power transformer specially designed for this machine.
4. The voltage part adopts two 5Z3Ps for full-ball rectification
5. The whole machine uses Russian electronic tubes:
6SL7 and 6SN7 vacuum tubes are used for voltage amplification,
KT150 vacuum tube is used for class A single-ended power amplification. It fully reflects KT150's unique personality of fineness, transparency, good positioning and good control.
6. Peripheral KT150 power tube current adjustment knob
7. Pointer output level display of left and right channels, power tube current display meter.
8. Infrared function remote control.
9. Power-on high voltage delay and mute delay function (about 30 seconds).
10. Volume and mute function remote control.
11. Adopt American high-quality American MIT Multicap coupling capacitors.

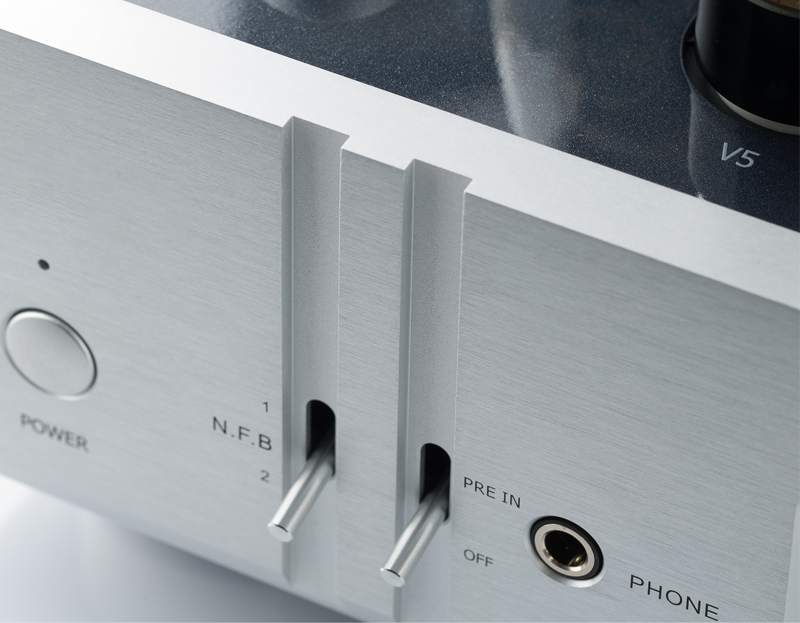

12. With pure post-stage function, it can be connected with independent pre-stage signal input.
13. It has a phono-play function and can be connected to a vinyl record player.
14. Choose Japanese ALPS custom motor potentiometer.
15. Pluggable vacuum tube protective cover for easy installation.
| Amp Name | Custom Grand Dual-Ball Rectifier Single-Ended Class A Tube Amplifier and Pure Power Amplifier |
| Technical Parameters | Rated output power: 22W+22W(RMS) Harmonic distortion: 1% (1KHZ) Frequency response of the whole machine: 10HZ~70KHZ(-1.5DB) Input sensitivity: 160mv(0db) 260 mV (-3db) 1V(pre in) Input impedance: 100KΩ Signal to noise ratio: 92db Output impedance: 4Ω 8Ω 16Ω Left and right output balance: <1db Power consumption of the whole machine: 200W Use vacuum tube: 6SL7×2, 6SN7 (Russia)×2, KT150 (Russia)×2 5Z3P*2 Machine volume (W×D×H): (440×400×230)mm Power supply voltage: ~230/115V±5% (50Hz) Working conditions: Temperature: 0ºC~40ºC Humidity: 20%~80% Storage conditions: Temperature: -20ºC~70ºC Humidity: 20%~90% |
| Components | Pot/Bias Japan, Sweden brand, etc |
| Features | 1.Purely handmade, the whole machine adopts scaffold welding 2.Using two high-quality, wide-frequency response and high-quality Japanese Z11 iron core square output transformers. 3.Use a high-power Z11 iron core toroidal power transformer specially designed for this machine. 4. The voltage part adopts two 5Z3Ps for full-ball rectification 5. The whole machine uses Russian electronic tubes: 6SL7 and 6SN7 vacuum tubes are used for voltage amplification, KT150 vacuum tube is used for class A single-ended power amplification. It fully reflects KT150's unique personality of fineness, transparency, good positioning and good control. 6. Peripheral KT150 power tube current adjustment knob 7. Pointer output level display of left and right channels, power tube current display meter. 8. Infrared function remote control. 9. Power-on high voltage delay and mute delay function (about 30 seconds). 10. Volume and mute function remote control. 11. Adopt American high-quality American MIT Multicap coupling capacitors. 12. With pure post-stage function, it can be connected with independent pre-stage signal input. 13. It has a phono-play function and can be connected to a vinyl record player. 14. Choose Japanese ALPS custom motor potentiometer. 15. Pluggable vacuum tube protective cover for easy installation. |

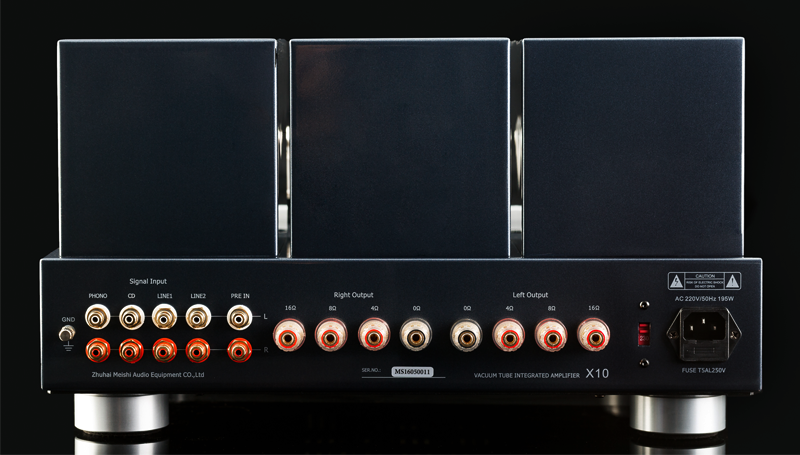

| Speakers connection | All tube amplifier used with stereo mode: L(left) and R(right) speakers. Normally there are 6 speaker cable connectors: +8L, +4L, -0L, -0R, +4R, +8R Example: +8L and -0L are for connecting with your Left 6-8ohms speaker -0R, +4R is for connecting with your Right 4ohms speaker |
| Customized | OEM, ODM, OBM |
| Tube Brand | Ruby, Shuguang, JJ, EH |
| Brand | Grand or custom as per logo plates |
Introduction:

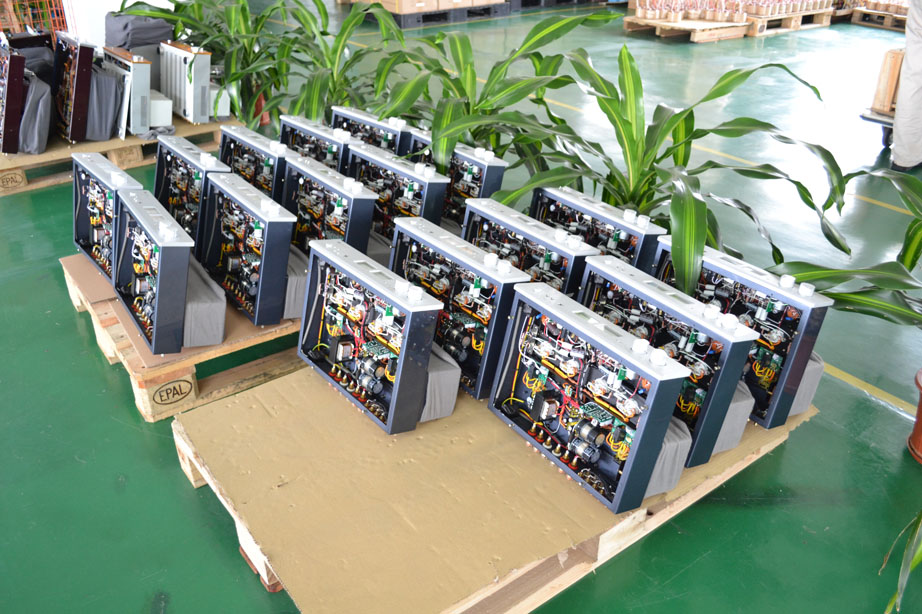

Our company has 230 workers, include 15 professional engineers. They supervise the whole producing line from choose material till packing. We can strictly arrange the products as your requests.
