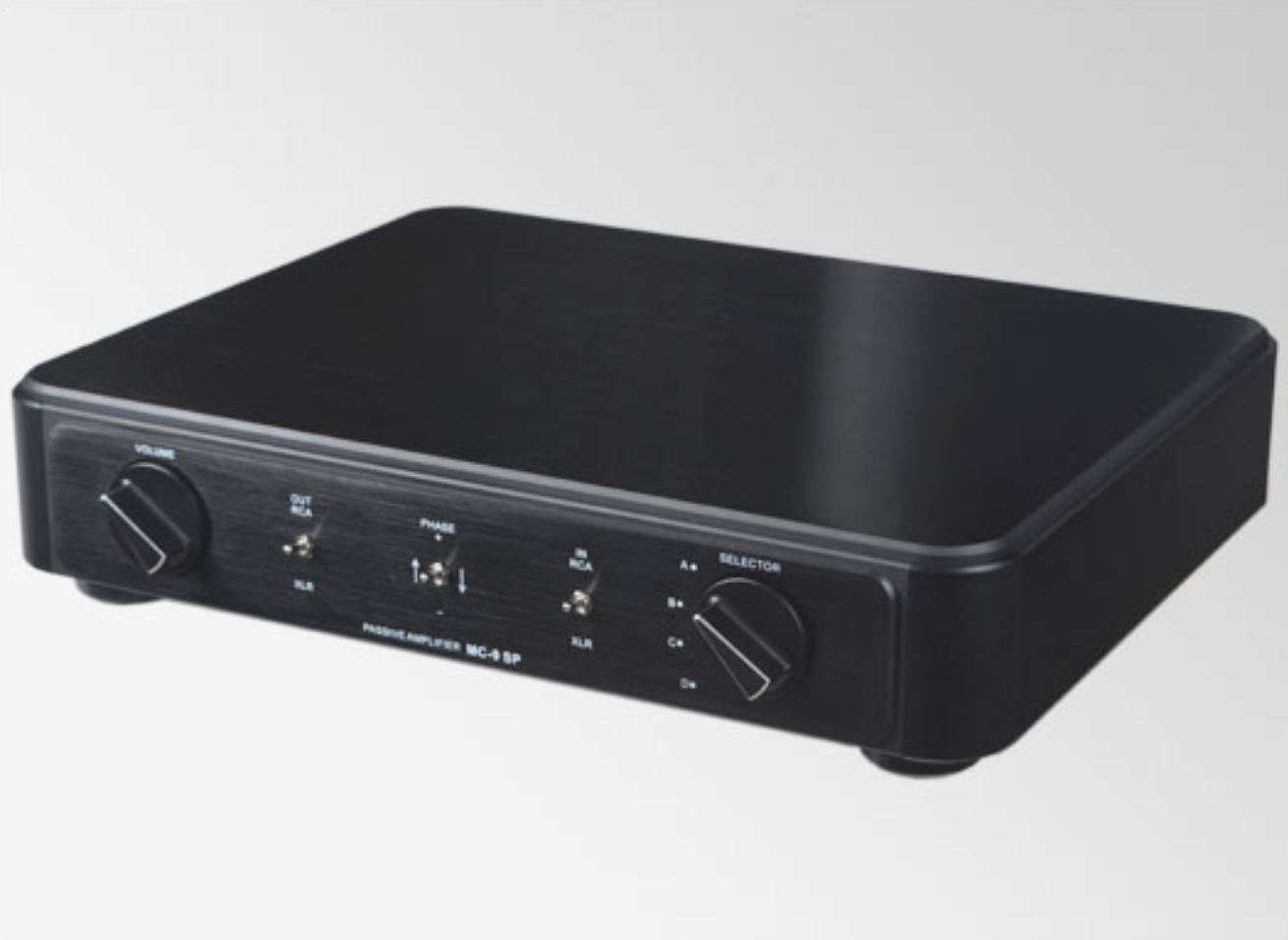

PASSIVE PRE-AMPLIFIER WITH PHASE SWITCH

Specification:

Passive pre-amplifier with Phase Switch 100% Brand new

Amplification: Times
Gain: 16db
Input Voltage: 100mv~2000mv
Output Voltage: 0.7V~14V
Frequency Response: 18Hz~22khz±1db
Signal To Noise Ratio: 95db

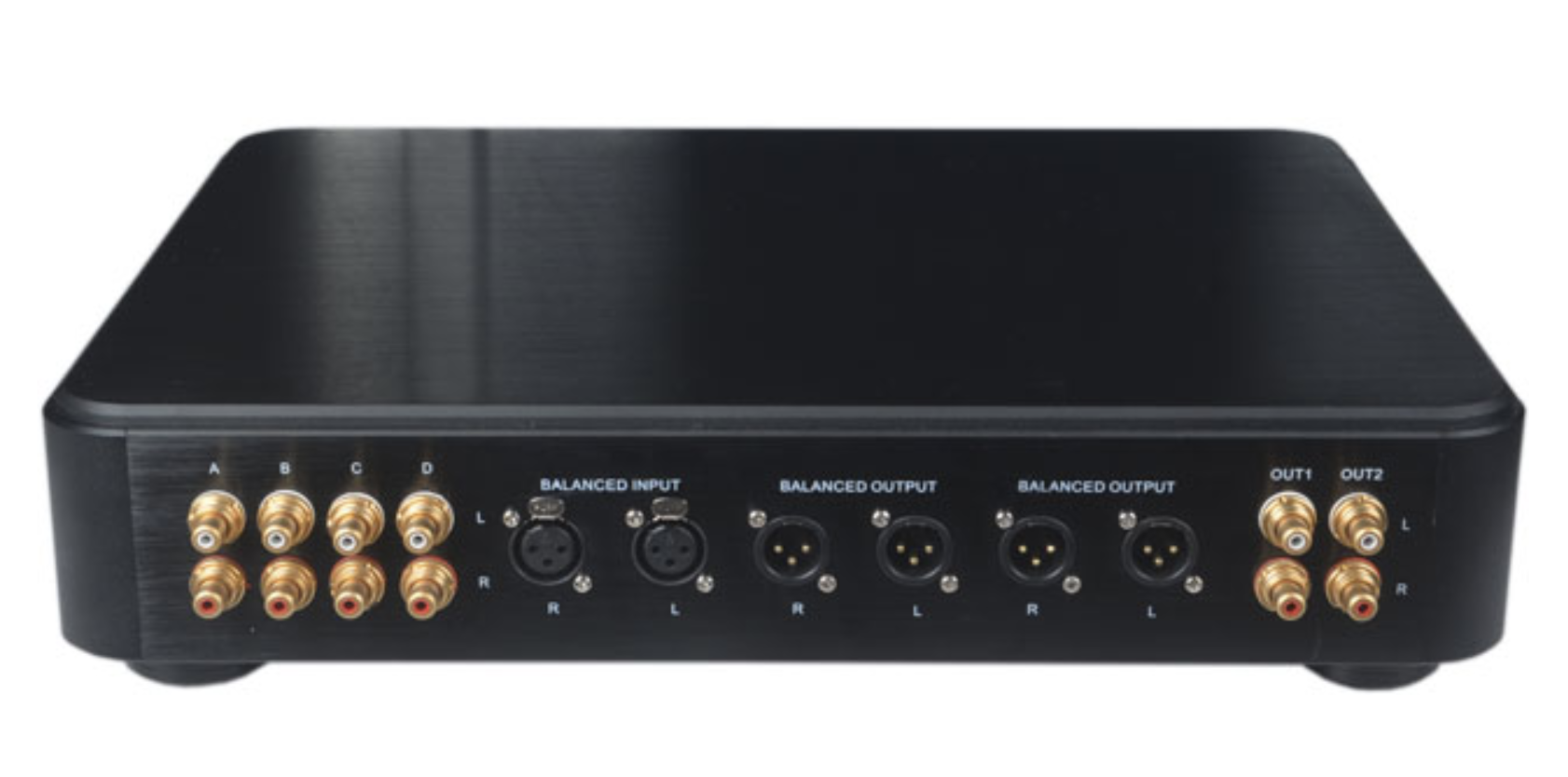

Unbalance Inputs: 4(Pairs)
Balance Input: 1(Pair)
Unbalance Outputs: 2(Pairs)
Balance Outputs: 2(Pairs)
Distortion Factor: ≤0.09%
Input Impedance: 600Ω
Output Impedance: 22K
Balance Input Impedance: 150Ω+150 Ohms
Balance Output Impedance: 5.5K+5.5 Kohms
Dimension(W*D*H): 430 × 310 × 110(Mm)
Net Weight: 6 Kg
Gross Weight: 8 Kg
