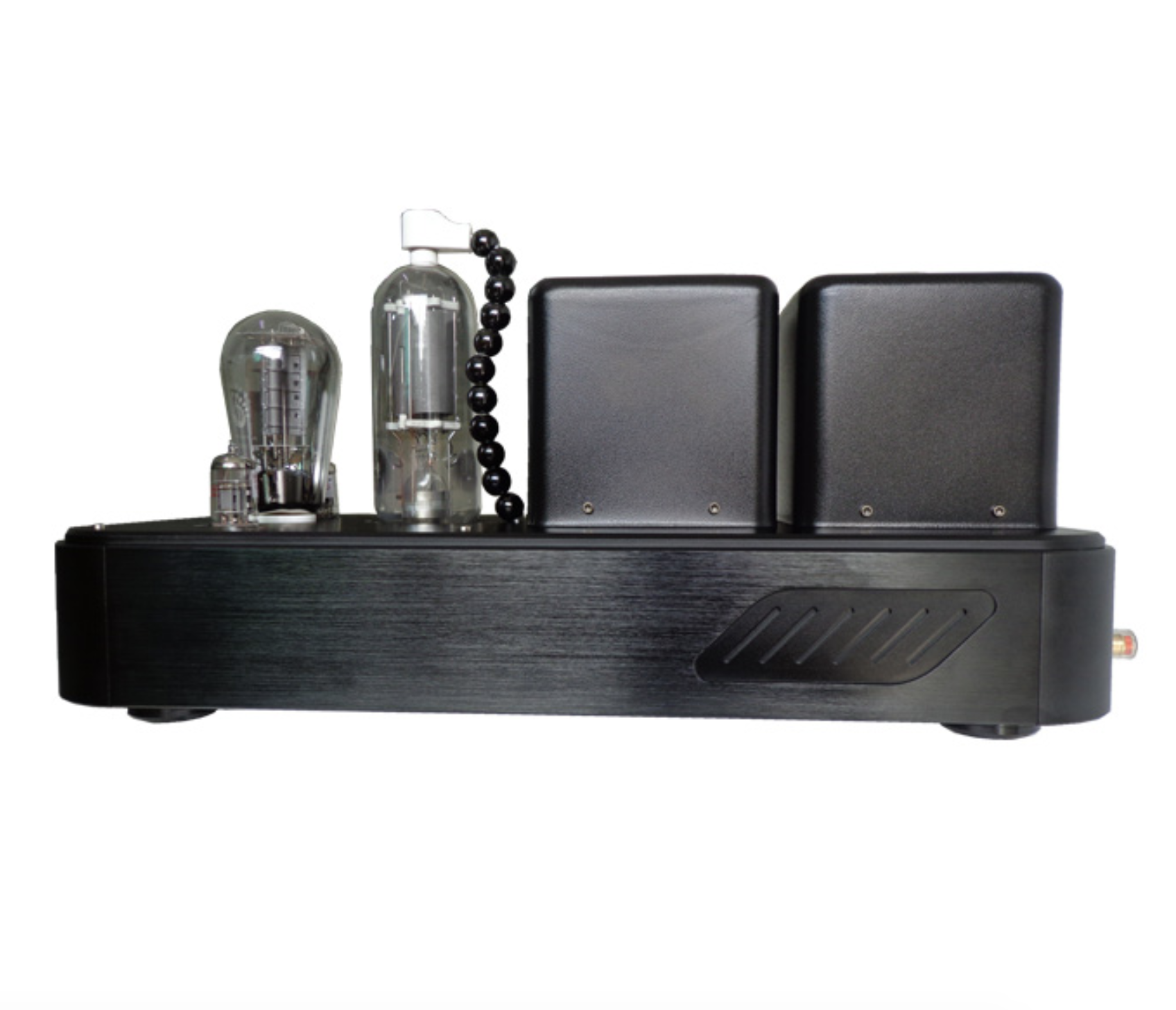

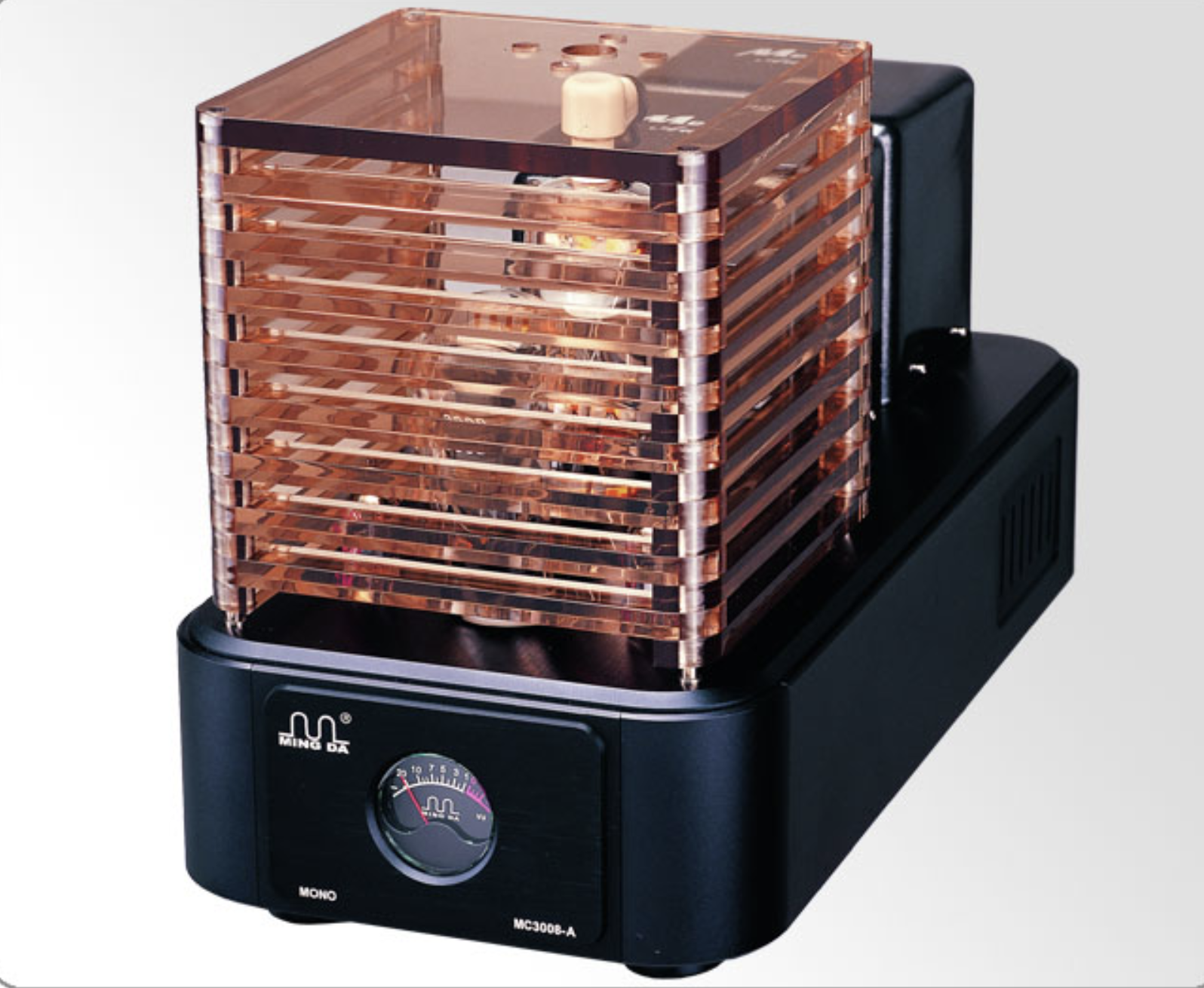

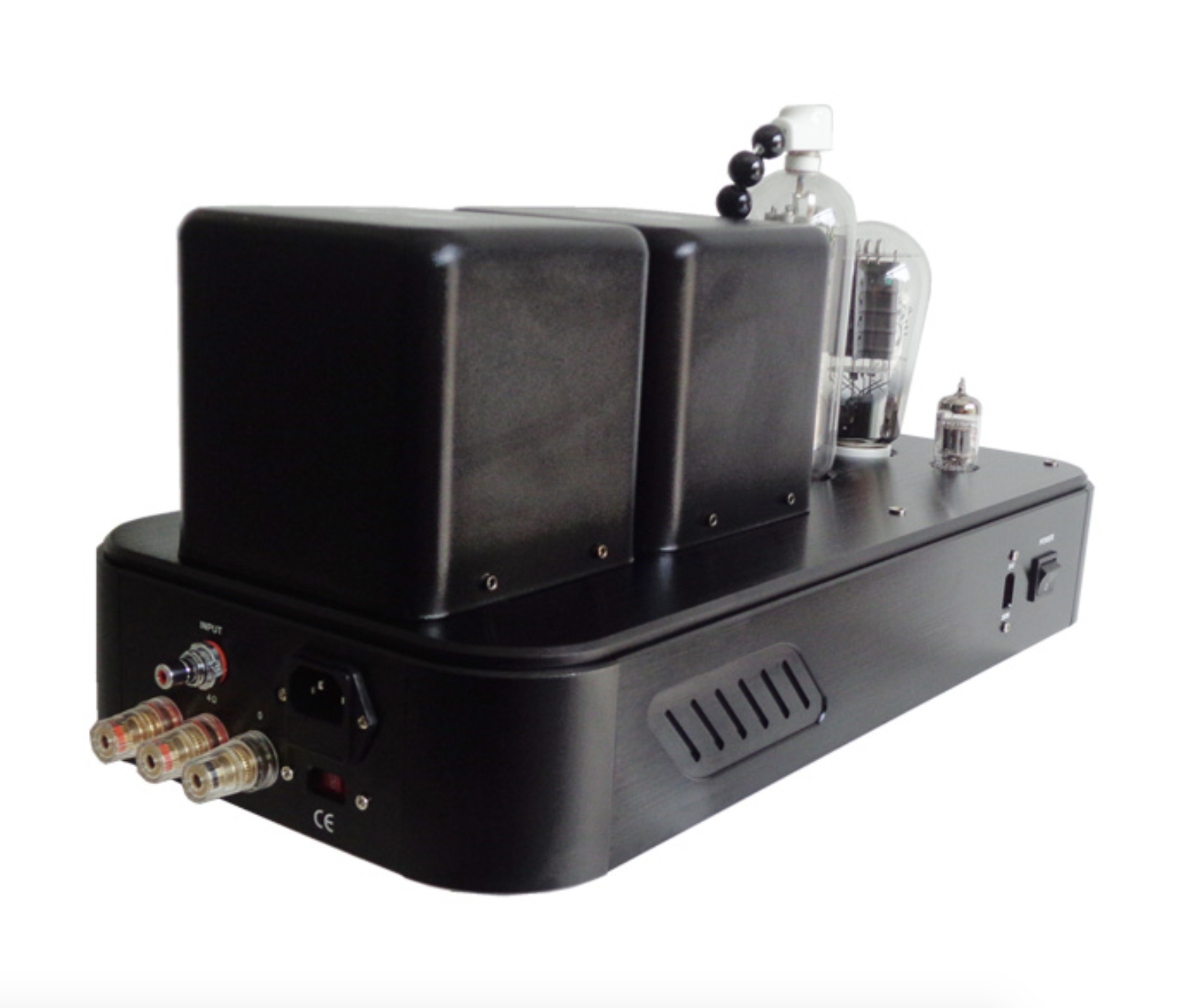

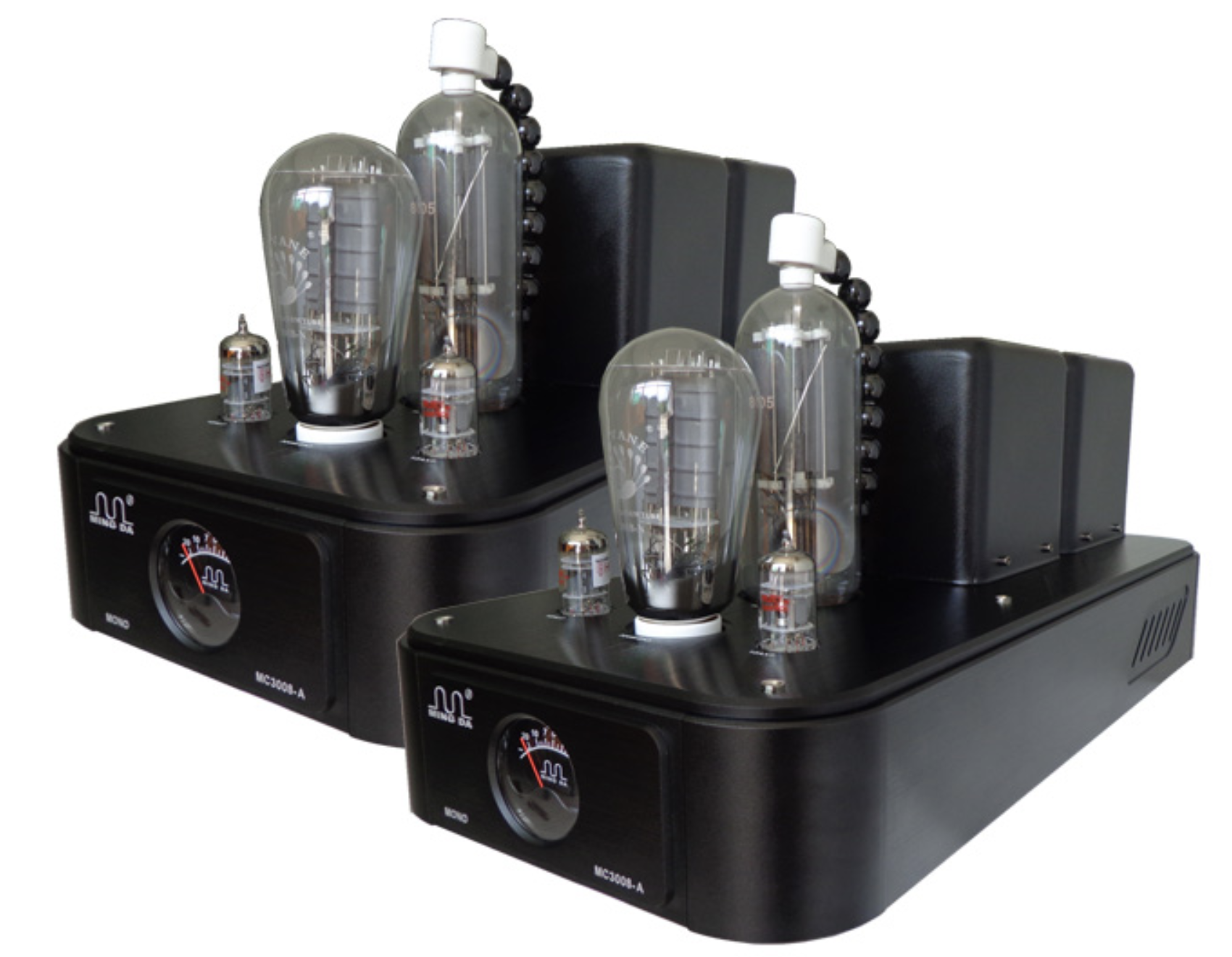

CLASS A SINGLE-ENDED 300B 805 TUBE MONO BLOCK POWER AMPLIFIER

All items guaranteed 100% BRAND NEW in the original edition Box.

ONE-YEAR WARRANTY !!!

Features:

a)The machine adopts pure Class A to amplify circuit ,and tube 300B drives 805 which makes it more perfect.

b)High frequency feels round and bright,while intermediate frequency is full.The low frequency feels strong and the voice field seems wide.

c)It looks powerful with an obvious gradation.

d)A remote controlled volume system is added to the machine,as well as the ALPS Potentiometer from Japan,and the the cover of handle is made by aluminum alloy.

e)The updated products is a symbol that Meixing Factory is coming to a new level.MC-2A3 is produced meticulously,using the Fanuc CNC and lathe bought from Japan at the end of 2010.The entire case is made with a 6mm thick aluminum alloy and the machine feet consists of aluminum alloy as well as the shockproof rubber ring.The factory chooses the chief electronic script.For example,the electronic tube adopts the international brand called JJ in Czech and the 300B from Tianjin.The tube 805 is made by Meixing Factory and the annealed silicon steel imported as well as anaerobic copper wire against high temperature from Janpan.The other materials included in this product is as follows:Jensen copper oil capacitors from Denmark,imported slivering signal line,imported connector,ALPS Potentiometer from Japan,imported aluminum electrolytic capacitor of high pressure,remote controlled handle made by aluminum,imported protective cover of Acrylic and the machine is produced by hand-welded.

f)The effect of the tone quality is comprehensive,correct,vivid and natural.It is worth having one.By the way,it sets up an transform switch called tube 300B/2A3.

Specifications:

Output Power: 40W

Output Impedance: 4Ω、8Ω

Sensitivity: 1000mv

Input Impedance: 100K

Distortion Factor: ≤1%

Signal-to-Noises: 91dB

Power Dissipation: 160W

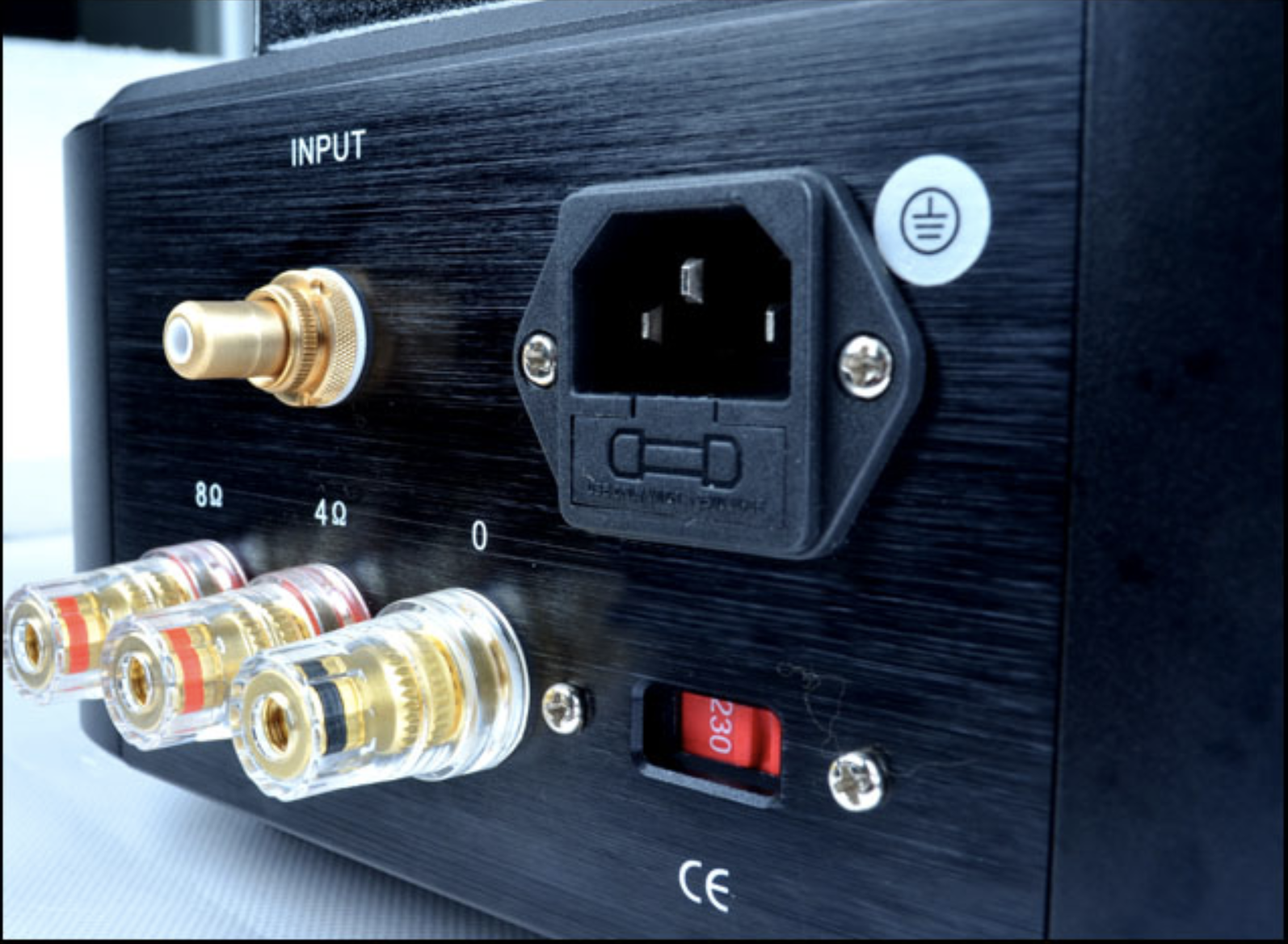

Inputs: 1 Groups

Outputs: 2 Groups

Frequency: 17Hz - 30KHz±1dB

Vacuum Tubes per channel: 300B x1, 805B ×1, ECC83×1, ECC82×1

Power supply voltage: 110/220V 60Hz/50Hz (100V, 120V, 230V, 240V version will take 3-14 work days to order), 110V and 220V version are in stock

Net Dimensions : L50 x W23 x H25 cm

Vacuum tube Packing size: L48 x W34 x H32 (cm)

Carton Size ：（L64 x W39 x H46 cm） x 2

Vacuum tube Packing weight: 6.5kg

Net weight : 22kg

Gross weight : 25kg x 2 = 50kg

Total weight: 50kg + 6.5kg = 56.5kg
