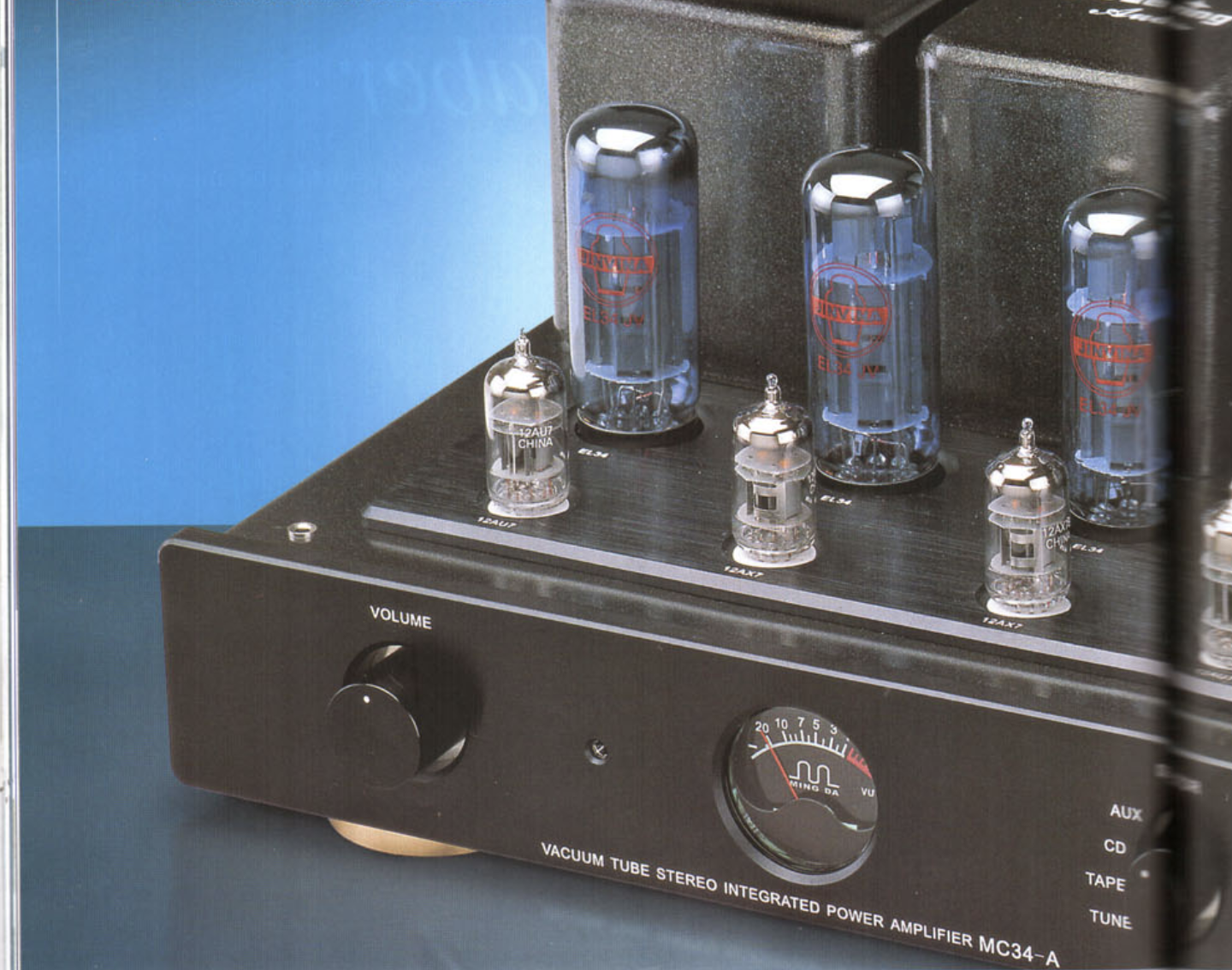

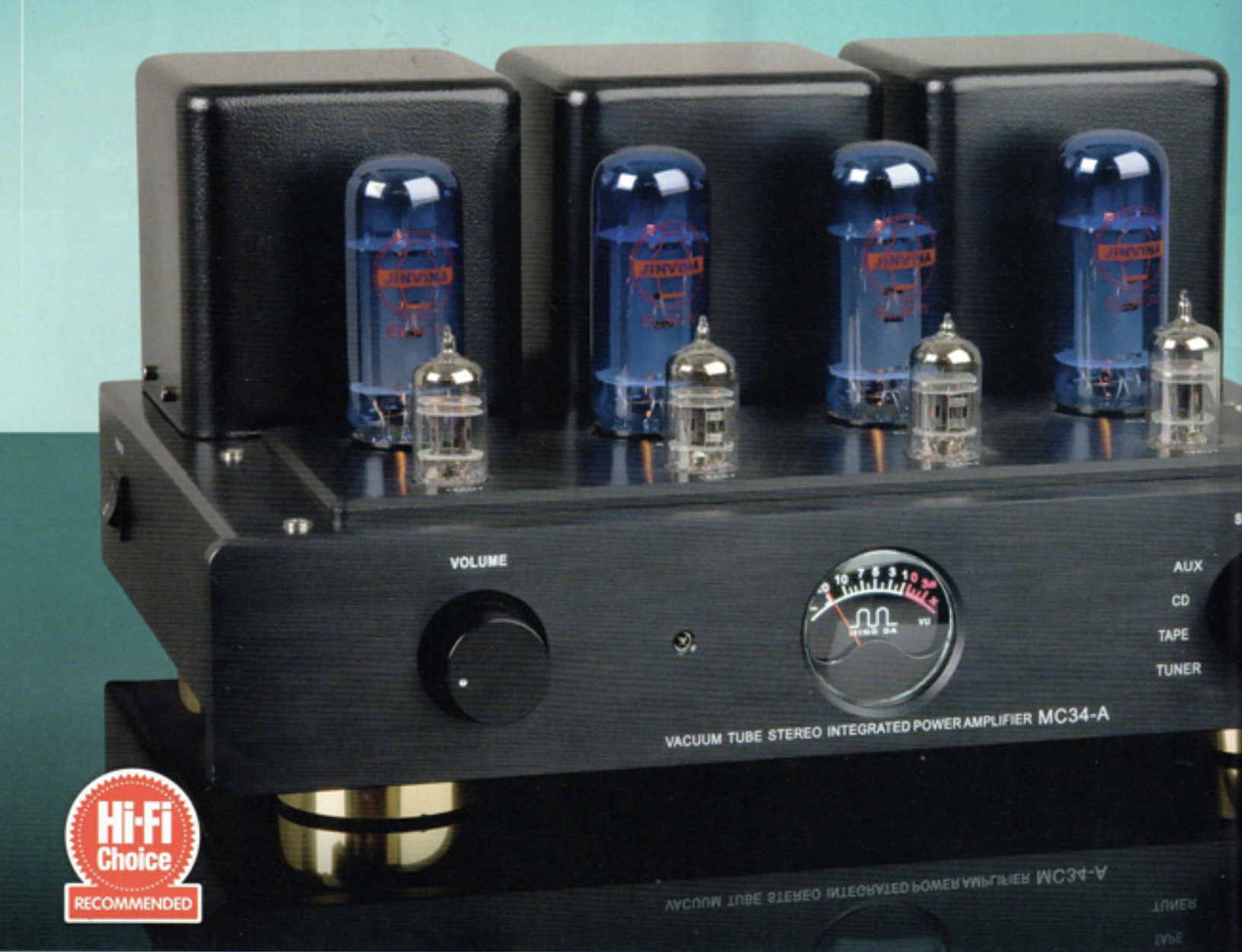

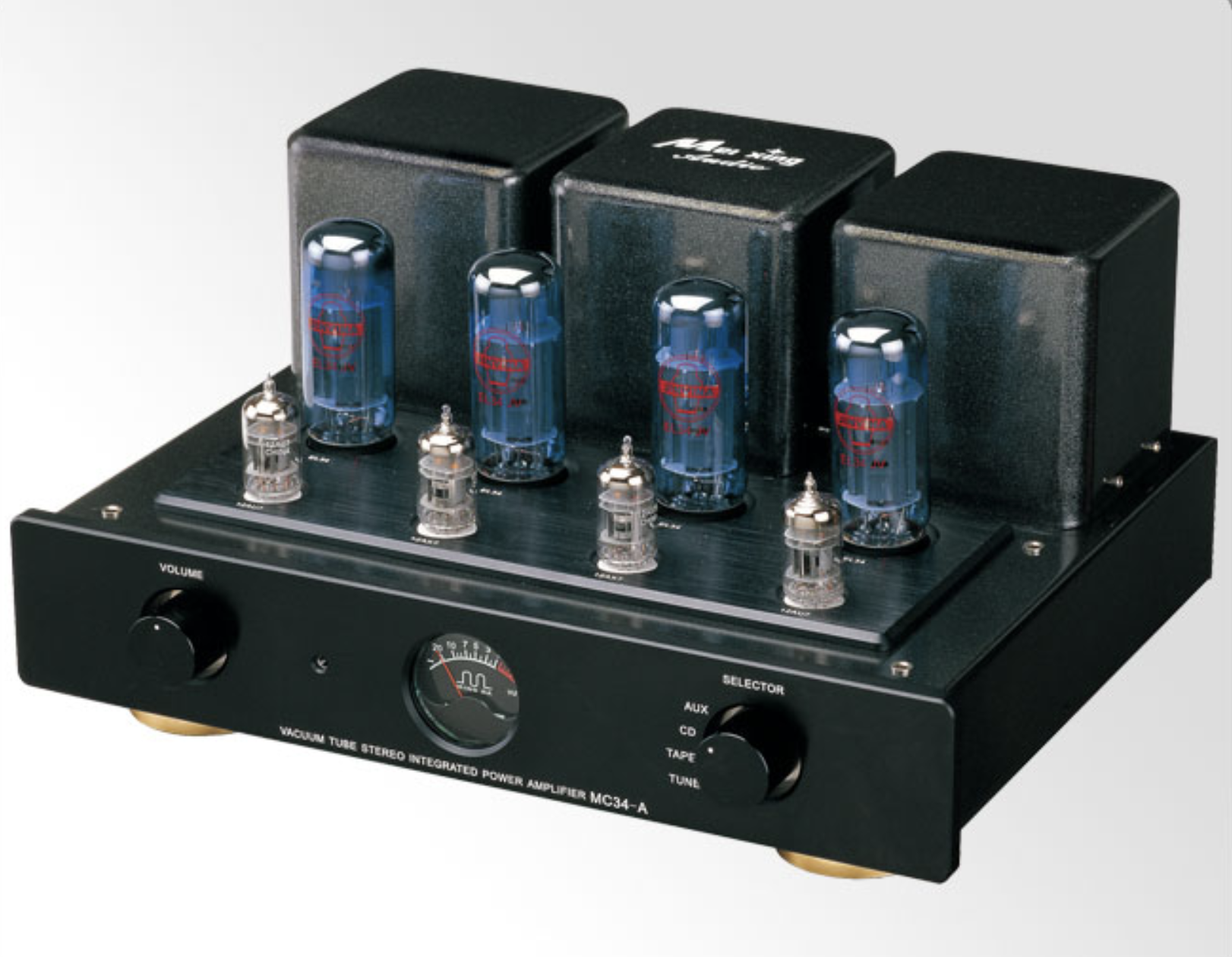

VACUUM TUBE EL34 INTEGRATED AMPLIFIER NEW

All items guaranteed 100% BRAND NEW in the original edition Box.

ONE-YEAR WARRANTY !!!

Features:

a)Adopts the tube EL34 produced by Grand Factory,which ensures the extraordinary performance of tone quality.

b)It uses anaerobic copper wire and the Z11 silicon steel sheets from Japan as well as the output transformer produced by Meixing Factory,which ensures the width of frequency response.

c)The machine consists of electrolytic capacitors, coupling capacitors, resistors,potentiometer,bridge rectifier, input and output terminals of famous international brands.It is produced by hand-welded and it ensures the stability of machine working.

d)A remote controlled volume system is added to the machine,as well as the ALPS Potentiometer from Japan,and the the cover of handle is made by aluminum alloy.

Specifications:

Output Power: 38Wx2

Output Impedance: 4Ω、8Ω

Sensitivity: 200mv

Input Impedance: 100K

Distortion Factor: 0.8%

Signal-to-Noises: 90dB

Power Dissipation: 140W

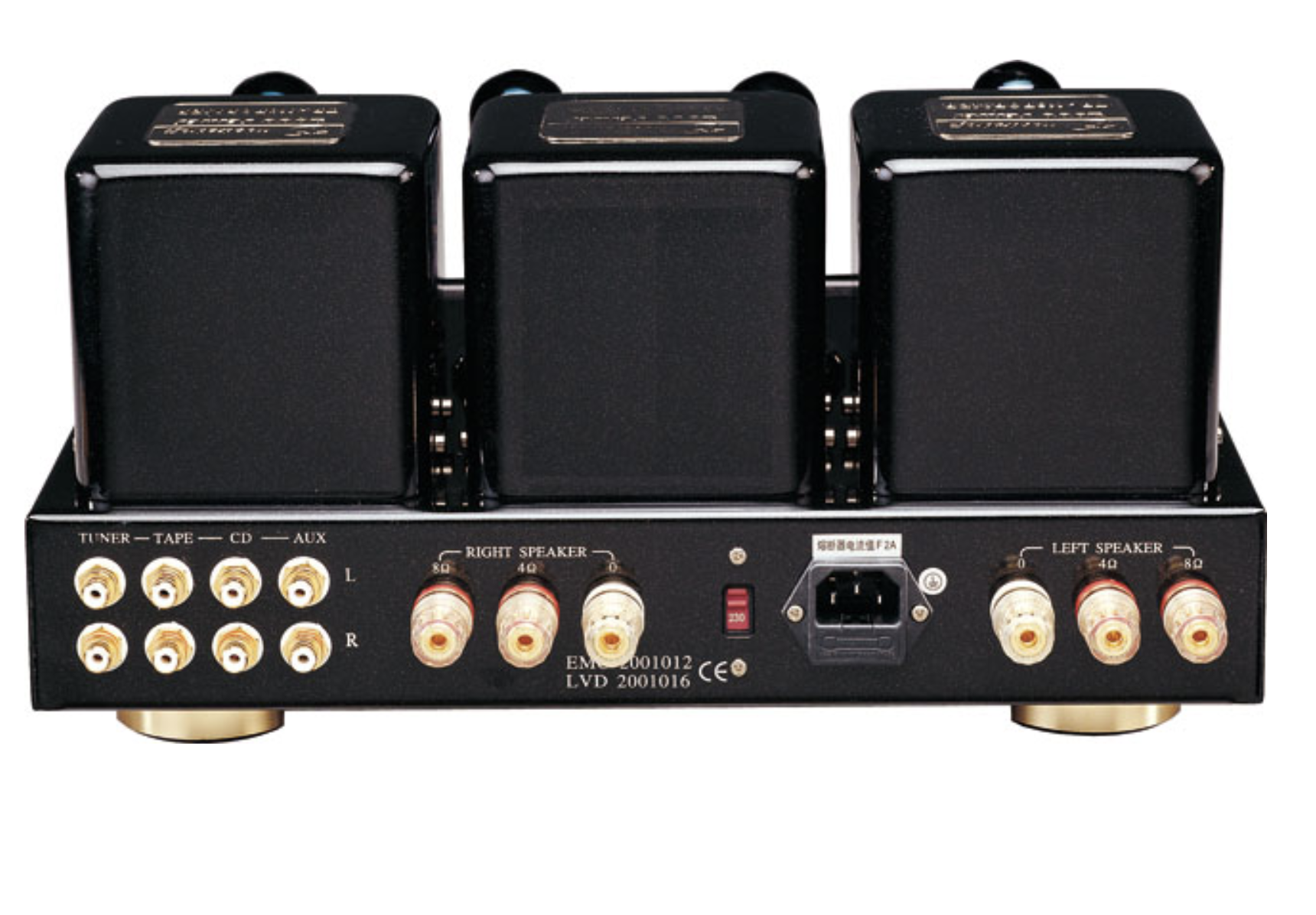

Inputs: 4 Groups

Outputs: 2 Groups

Frequency: 18Hz-60KHz±1dB

Vacuum Tubes: EL34 x4(Specially)、12AX7 x2、12AU7 x2

Power supply voltage: 110/220V 60Hz/50Hz

(100V, 110V, 120V, 230V, 240V version will

take 3-14 work days to order),

110V and 220V version are in stock

Net Dimensions : W38 x D32 x H20 cm

Carton Size ：L50 x W45 x H36 cm

Net weight : 19kg

Gross weight : 23kg
